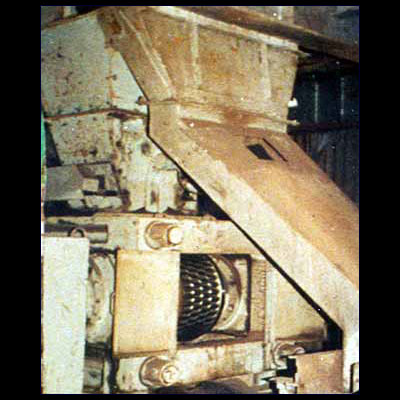

HYDRAULIC BRIQUETTING PRESS
-
Description:
This machine is suitable for proper agglomeration of feed mix. The machine consists of chassis by fabricated joist & channel. On chassis fabricated frame will be provided which will duly stress relieved and properly machined for proper alignment. Two numbers segmented rollers revolved in opposite direction for making briquette and leave it down. The rollers are segmented type duly case hardened for abrasion resistance and easily replaceable. The roller pressure will be generated by Hydraulic Thruster system for perfect and measured uniform pressure. For free revolution of rollers 8 numbers heavy-duty self-aligned bearing will be provided. One number heavy-duty gearbox will also be provided for speed reduction.
Description:
This machine is suitable for proper agglomeration of feed mix. The machine consists of chassis by fabricated joist & channel. On chassis fabricated frame will be provided which will duly stress relieved and properly machined for proper alignment. Two numbers segmented rollers revolved in opposite direction for making briquette and leave it down. The rollers are segmented type duly case hardened for abrasion resistance and easily replaceable. The roller pressure will be generated by Hydraulic Thruster system for perfect and measured uniform pressure. For free revolution of rollers 8 numbers heavy-duty self-aligned bearing will be provided. One number heavy-duty gearbox will also be provided for speed reduction.
Specification:
Roller dia : 660 mm.(approx)
Roller width : 225 mm.( " )
Size of briquette : Our standard size 65 x 40 x 20 mm.
(approx)
Gearbox : To suit.
Motor : 45 Kw.
Capacity : 5 – 10 Tons./Hr.
Material to be briquetted : Chrome Ore, Coke, Manganese Ore, Iron Ore
fines.
